Product: Laboratory & Scientific Equipment

Embedded System & Power Electronics

Embedded System

DSP based Control

To understand the basics of this technology we have developed a variety of solutions which includes development & training platform and interfacing modules.

Power Electronics

Converter & Inverter

It is the discipline that involves the study, analysis, and design of circuits that convert electrical energy from one form to another

Other Equipment

Internet of Things

Use the cutting-edge technologies to build your prototype and quickly upgrade it to a market-ready product.

IGBT based Power Stack (Enclosed)

3 Phase rectifier
IGBT Inverter
Break Chopper

Fearures:

Multi-function IGBT Converter Transparent enclosure to allow visualisation of internal parts. Encapsulated assembly makes it easier for students working in power electronics laboratory and to study modern converters without shock hazards.
External Connection for easy wiring
Built in isolated IGBT driver and IGBT protection
Forced-air cooled heatsink
Higher switching frequencies up to 20kHz

Download Brochure

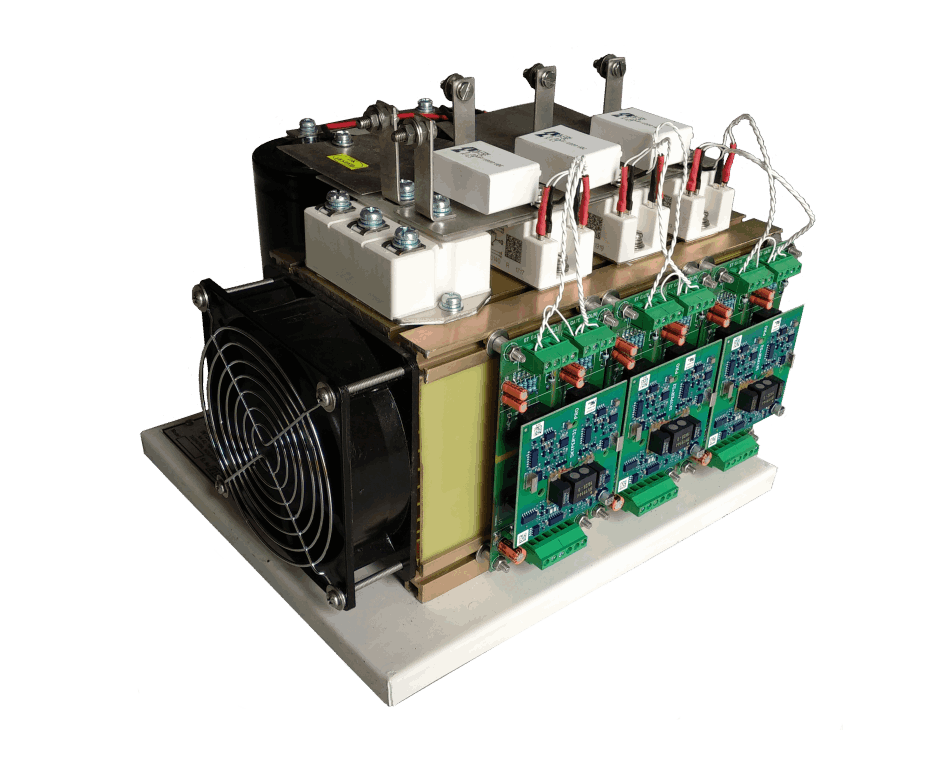

IGBT based Power Stack (Open Frame)

3 Phase rectifier
IGBT Inverter

FEATURES

Open frame Power Converter Stack for electrical experiment. Easier for students working in power electronics laboratory and to study modern converters.
External Connection for easy wiring
Built in isolated IGBT driver and IGBT protection
Forced-air cooled heatsink
Higher switching frequencies up to 40kHz

Download Brochure

Inverter Kit

A three leg MOSFET based H-Bridge inverter

Features:

3-phase bridge inverter Sinusoidal pulse width modulation (undermodulation/overmodulation) and square wave mode (180° conduction)
Single phase H-bridge configuration support both unipolar sine PWM and bipolar sine PWM operation
Soft start feature, short-circuit and under-voltage protection
Built in isolated Mosfet driver
Rugged enclosure with transparent side face to allow visualisation of internal circuit

Download Brochure

Other Similar Product Range:

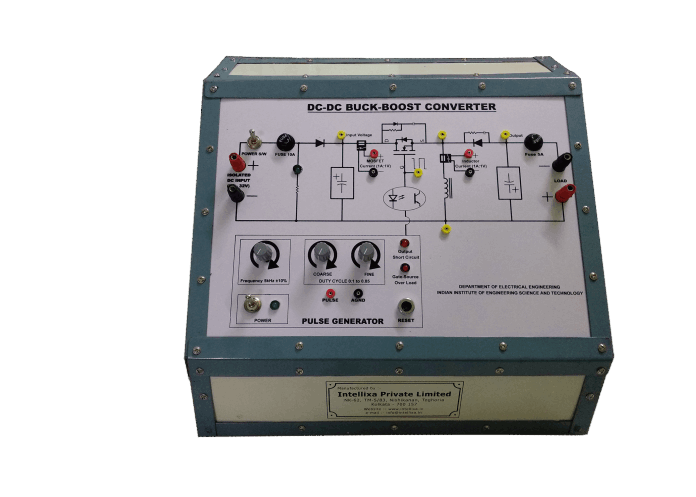

DC-DC Buck-Boost Converter

The buck–boost converter is a type of DC-to-DC converter that has an output voltage magnitude that is either greater than or less than the input voltage magnitude

Download
Brochure

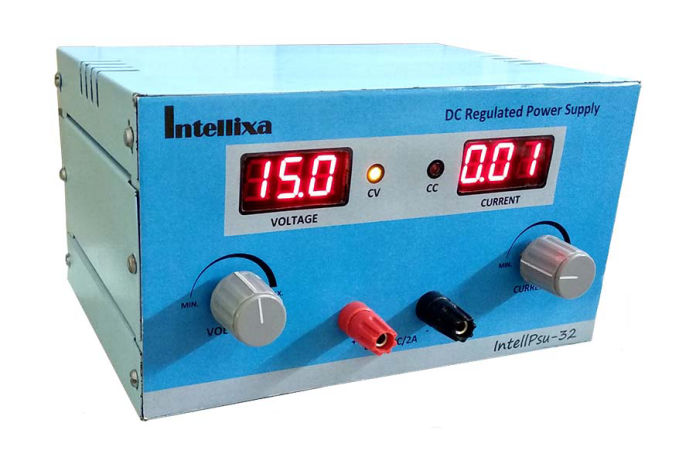

Power Supply

We offers wide range of Test Bench Power Supplies like General Power Supplies,Programmable Power Supplies.

Download
Brochure

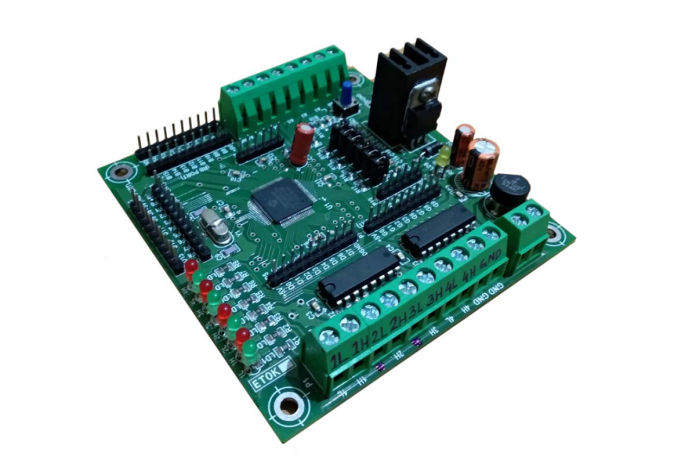

DSP Development Board

Development board for Microchip dsPIC30F / dsPIC33 series controller. The board is developed for both student and professional for prototype development of Power Electronics Product.

Download
Brochure
